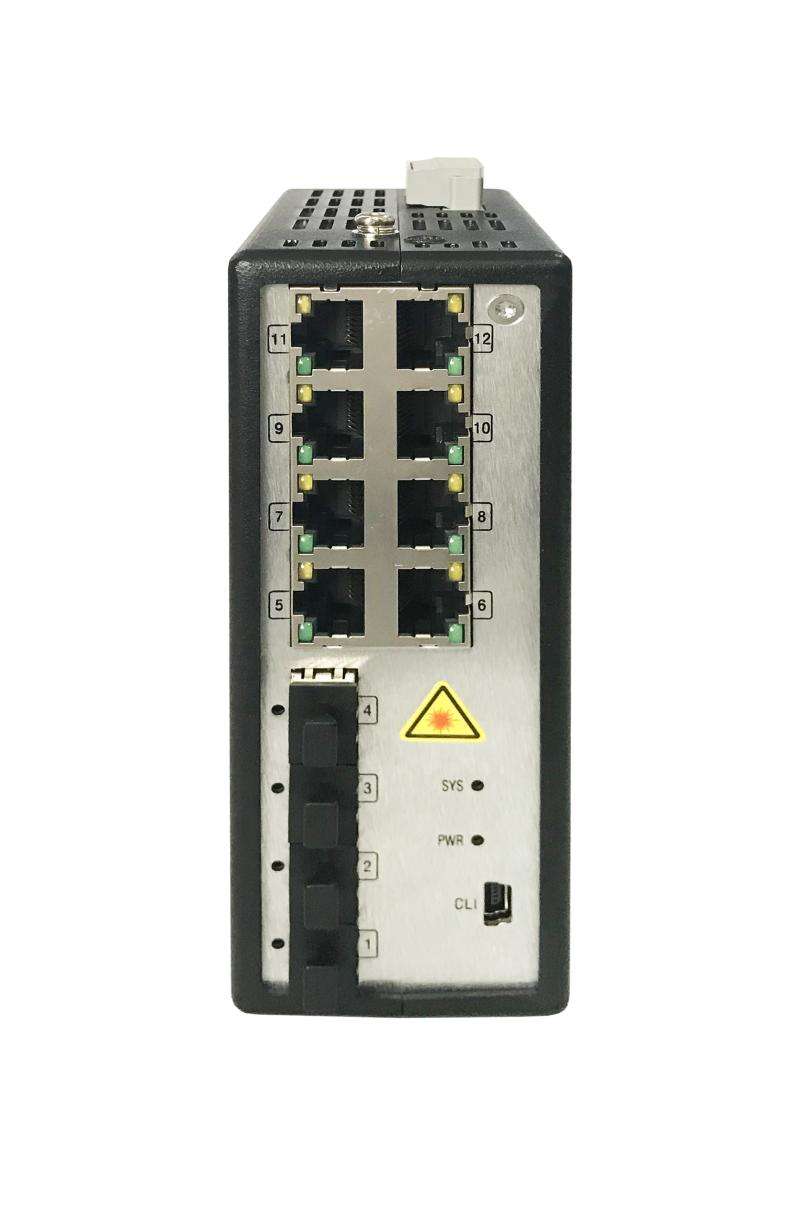

DS-3T3512P

8 Port Gigabit Full Managed Industrial POE Switch
4 × 1000BaseX SFP Port, 8 × 802.3af/at PoE/PoE+ 10/100/1000BaseT Port, and 1 × Management Serial CLI Port.
Support static routing, policy routing, rip, OSPF and other three-layer routing protocols.
Easy network management by web browser, CLI, Telnet, serial console.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
SNMPv1/v2c/v3 for different levels of network management.
Support IEEE 802.3af/at compliant PoE.

Category:

Description

General
Dimension (W × H × D) 140 mm × 52 mm × 110 mm (5.50″ × 2.04″ × 4.33″)
Working Temperature -40°C to 75°C (-40°F to 167°F)
Working Humidity 5% to 95% (no condensation)
Alimentation 48-57VDC, Redundant dual inputs ( Power supply unit is not included)
Max. Power Consumption 250 W
Network Parameters
MAC Address Table 8 K
Ports 8 × Gigabit PoE port,4 × Gigabit fiber optical port
Switching Capacity
Whole-Device Performance: 24 Gbps
Port Performance: 24 Gbps
Packet Forwarding Rate
Whole-Device Performance: 17.85 Mpps
Port Performance: 17.85 Mpps
